TDB-25F extrusion blow molding machine

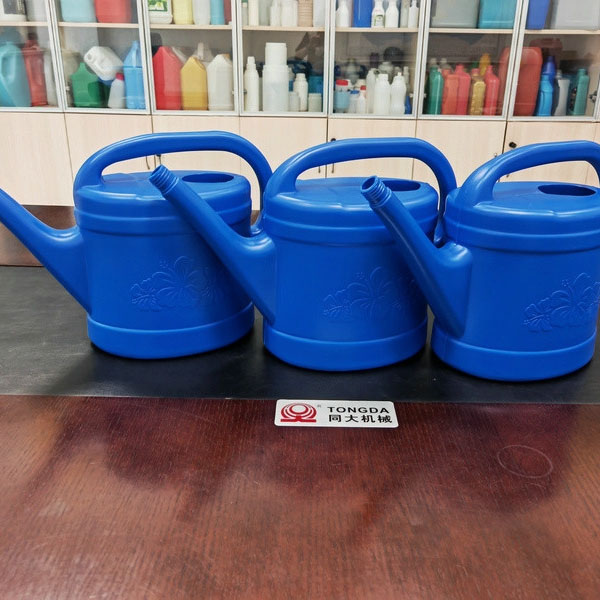

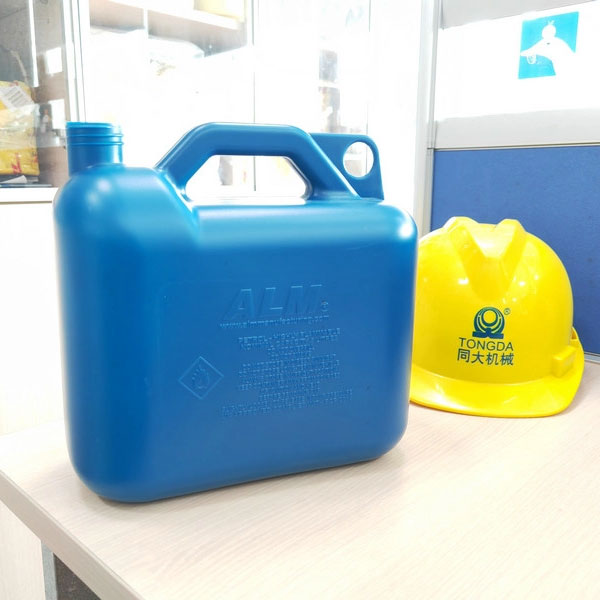

Our TDB-25F model is one of our hot sale model extrusion blow molding machine. It is with wide applications, not only can produce plastic containers size to 25liters, also can produce different shape plastic hollow products, such as tool box, ice box, plastic mannequin base, sports items, toys, furniture, industrial products, etc.
Technical Parameters
| MODEL | Units | TDB-25F |
|---|---|---|
|
Max. Product volume |
L |
25 |
|
Output of HDPE |
kg/h |
110 |
|
Clamping force |
kn |
215 |
|
Screw diametre |
mm |
80 |
|
Screw heating power |
kw |
19 |
|
Blow pressure |
mpa |
0.6 |
播放视频
Application
Product Details
Patented product: Two tie rods, single cylinder bidirectional synchronous mold opening and closing center mold clamping mechanism, which makes product quality stable and this design easy to take out the product.
Separate oil source, for parison controller, to ensure better and more stable reaction speed.
contact us
We are a leading supplier of extrusion blow molding machines and moulds with over 20 years of experience and a production capacity of over 800 units/year.
